bluEmber Eave Lights

Product details

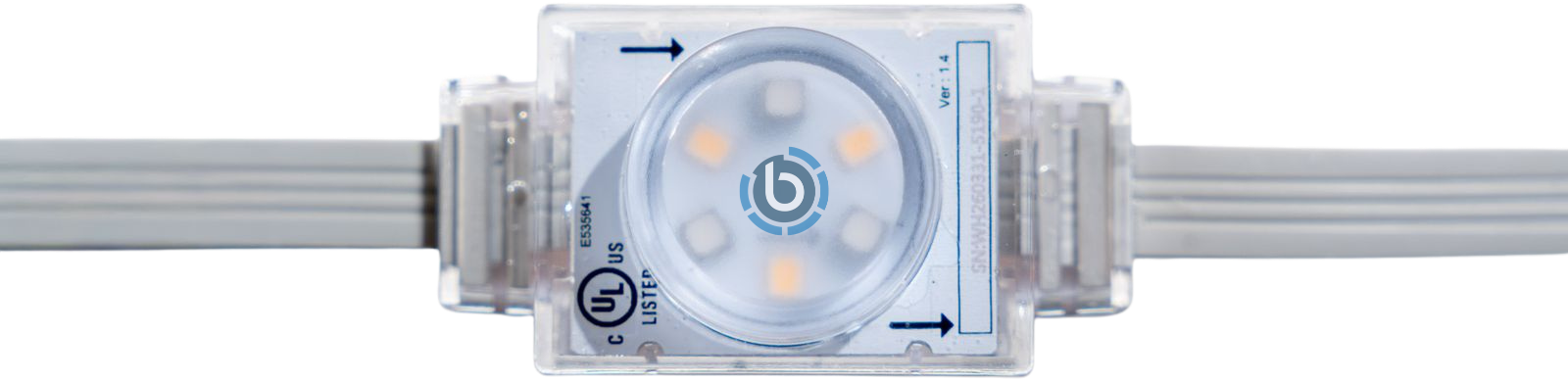

Close-up of a bluEmber LED light module with UL certification

Featured specs

Built bright. Built right.

Color output
Full spectrum RGBW
Spacing
6", 10", 12" between lights
Brightness
95 lumens per light · 6 diodes per light
Capacity
Up to 4,112 individually addressable lights
Weather rating
IP-68 rated, UL Certified + ETL Listed
Control
Wi‑Fi 2.4 GHz — also works without Wi‑Fi
Warranty
Lifetime LEDs
View full spec sheet

Full spec sheet

Technical details

Light quality
Diodes per light
6
Lumens per light
95
Color output
RGBW
Lens / diffusion
Frosted + Full Frosted
Durability
IP rating
IP-68
Lifespan
100,000 hrs
Connector type
Metal threaded
Backup data wire
Yes
Power injection required
After 415 ft
Smart features
Max lights / system
4,112
Light spacing options
6" / 10" / 12"
Individually addressable zones & lights
Yes
Voltage
48V
Warranty
Lifetime LEDs

Lights

Size
3/4" x 1 1/4"
Spacing
6", 10", 12" between lights
Color output
Full spectrum RGBW
Lens / diffusion
Frosted + Full Frosted, no shadowing
Diodes
6 per light
Brightness
95 lumens per light
Weather rating
IP-68 sealed
Lifespan
100,000 hours
Connectors
Metal threaded
Wire
16-gauge, 4 wire — power, communication, redundant data, ground
Backup data wire
Yes — a single fault won't take down the run
Power usage
Less than 1 W on full bright white
UL Certified + ETL Listed permanent exterior LED lighting

Controller

Display
LED light strip preview · 4 directional arrows · OK · On/Off · Menu
Chip
Omega chip
Voltage
48V DC low voltage for lighting · 12V for controller
Power injection
Required after 415 ft of continuous run; additional supplies add via the controller.
System capacity
Up to 4,112 lights per system
Addressability
Individually addressable zones and lights
Plug
Standard 110 outlet
Connection
Wi‑Fi 2.4 GHz — also works without Wi‑Fi
UL Certified + ETL Listed controller

bluEmber Eave Lights

Track Colors

Discreet color-matched track blending into the soffit

Discreet track that's
hidden during the day.

This low‑profile design hides all wires and components, making the system blend seamlessly into your exterior so that passersby won't even know it's there.

Color matched to
blend in seamlessly.

Our team will color match the track to your soffit during initial measurements to ensure it blends in during the day.

bluEmber Eave Lights

Light Spacing

6 inch
6 inch

Perfect solution when brightness is your priority — 50% more lights than our standard.

10 inch
10 inch

Our best-selling spacing. Mimics the look of traditional holiday lights.

12 inch
12 inch

Great if you want less color blending and more definition between individual points.

bluEmber Eave Lights

Install Methods

Every home is different. Our installers use the right track profile for your soffit, drip edge, or architectural detail.

Standard track
  • Flat soffit
  • 10" between lights
  • Lights face directly downward
Standard track
Canted track
  • Angled soffit
  • 10" between lights
  • Lights face directly downward
Canted track
Fat track & standard track
  • Soffit less than 1 1/4" wide
  • Beams, awnings, pergolas, etc.
  • Lights face directly downward
Fat track & standard track
Z‑flashing & standard track
  • Soffit less than 1 1/4" wide
  • Drip edge or wall cap
  • Lights face directly downward
Z‑flashing & standard track
45° track
  • No soffit
  • Drip edge or wall cap
  • Lights face at a 45° downward angle
45° track
Radius track
  • Round structure
  • 10" between lights
  • Can be paired with other tracks to change light angle
Radius track
